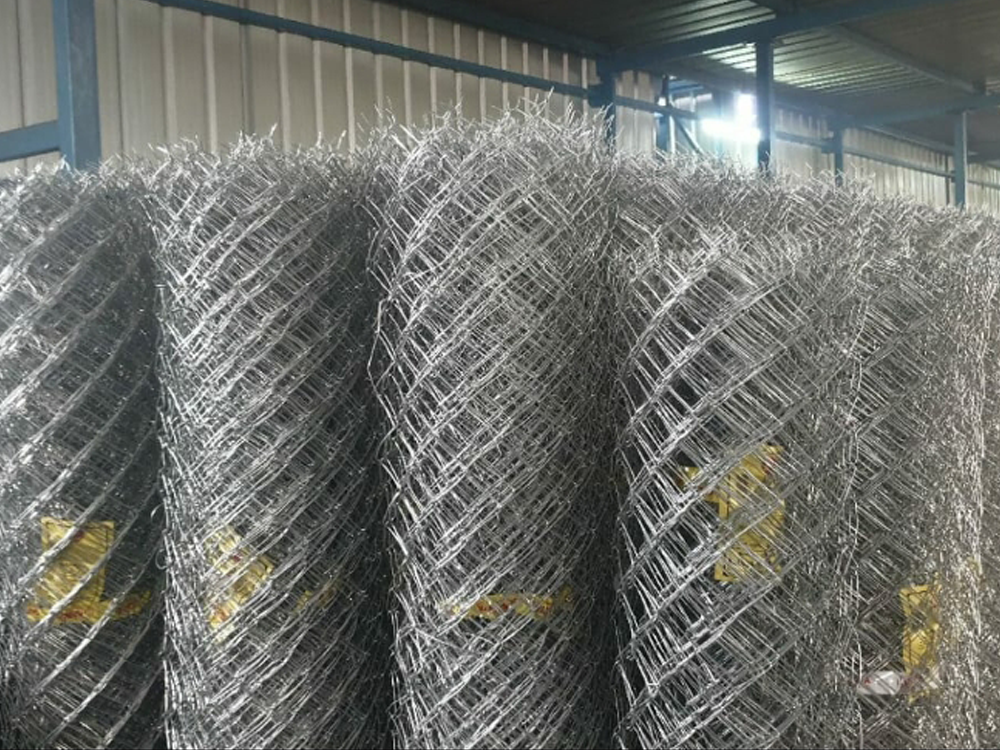

Chain Link Diamond Wire Mesh
Chainlink fencing is available in varied specifications of width, length, size and height.
Their rigidity, high strength, and anti corrosive properties distinguish hem from other fencing brands.
Features:
- as per IS 2721-2003 (Bureau of Indian Standards).
- high-strength
- anti-corrosive.
- highly rigid.
- Sizes available 25mm to 100mm and height available up to 3 meter.
- Heavy coated premium quality.
Product specifications for different sizes
| Size | 2mm | 2.5mm | 3mm |
|---|---|---|---|
| 2"*2"*3'*100' | 32Kg | 48Kg | 68Kg |
| 2"*2"*4'*100' | 40Kg | 64Kg | 88Kg |
| 2"*2"*5'*100' | 50Kg | 78Kg | 108Kg |
| 3"*3"*3'*100' | 21Kg | 33Kg | 46Kg |
| 3"*3"*4'*100' | 27Kg | 42Kg | 59Kg |
| 3"*3"*5'*100' | 33Kg | 51Kg | 72Kg |
| 4"*4"*3'*100' | 17Kg | 26Kg | 36Kg |
| 4"*4"*4'*100' | 22Kg | 32Kg | 46Kg |
| 4"*4"*5'*100' | 26Kg | 39Kg | 57Kg |
| 5"*5"*3'*100' | --- | 22Kg | 29Kg |
| 5"*5"*4'*100' | --- | 27Kg | 37Kg |
| 5"*5"*5'*100' | --- | 32Kg | 46Kg |
